Dashboard

Trunk Flaky Tests detects flaky tests by analyzing test results. The health of your tests is displayed in the Flaky Tests dashboard.

​

Collections overview

When you navigate to /<your-org>/flaky-tests, you land on your test collections. The page exists to answer two questions — what collections have flaky tests, and which are not finished being set up. Each row is headed by the collection’s name and description. Search narrows the list, and Create Collection adds one. A quarantine status icon appears next to a collection’s name when quarantining is configured:

​

Repositories

While you are migrating, the repository view stays available behind Legacy view on this page. It carries the same columns and the same quarantine icons, per repository rather than per collection. Active repositories (those with test data in the last 30 days) appear at the top of the list. Repositories with no recent data are collapsed under an Inactive Repositories section you can expand. See the migration guide for how the two views relate, and Quarantining to configure quarantine settings.

​

Collection dashboard

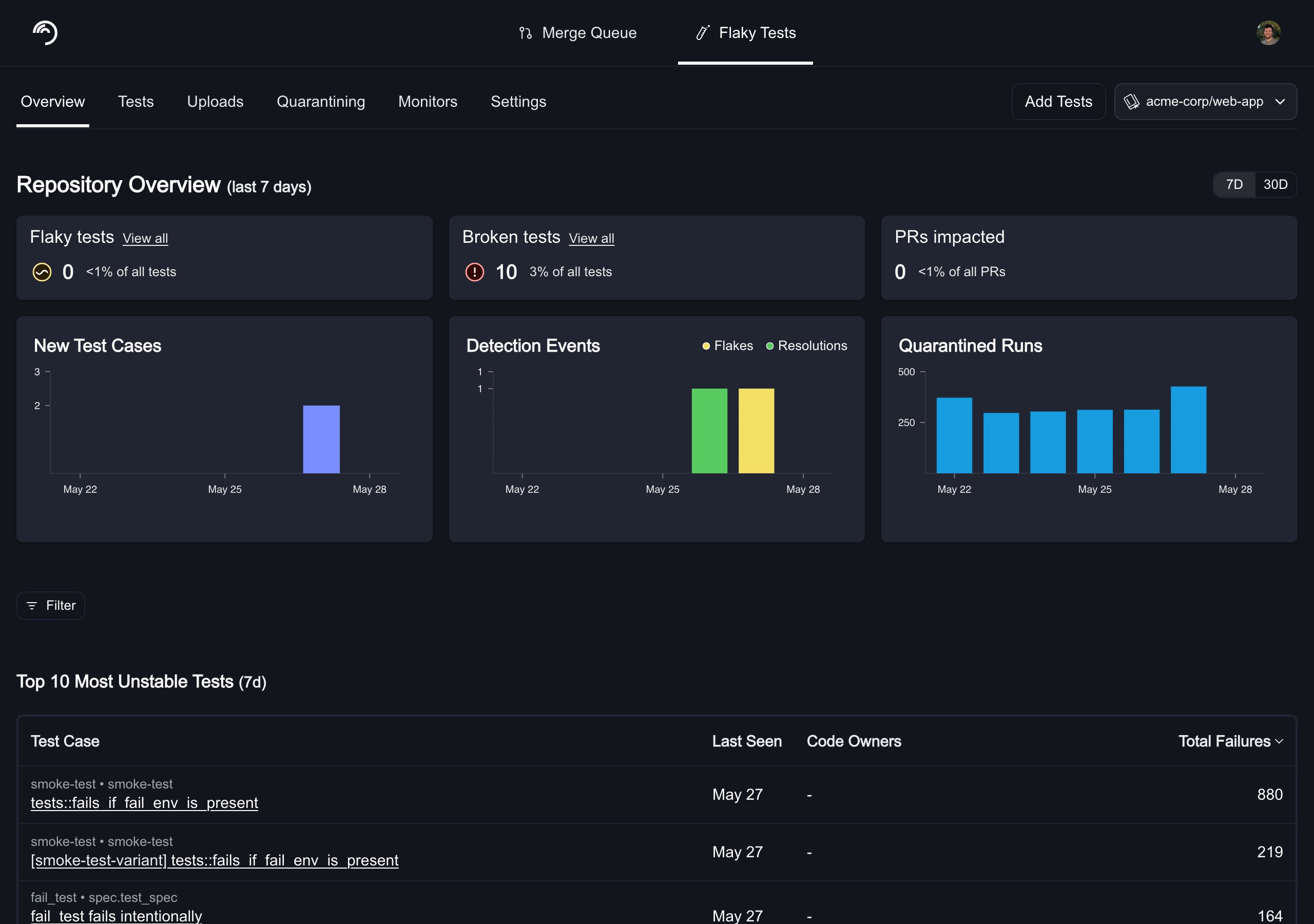

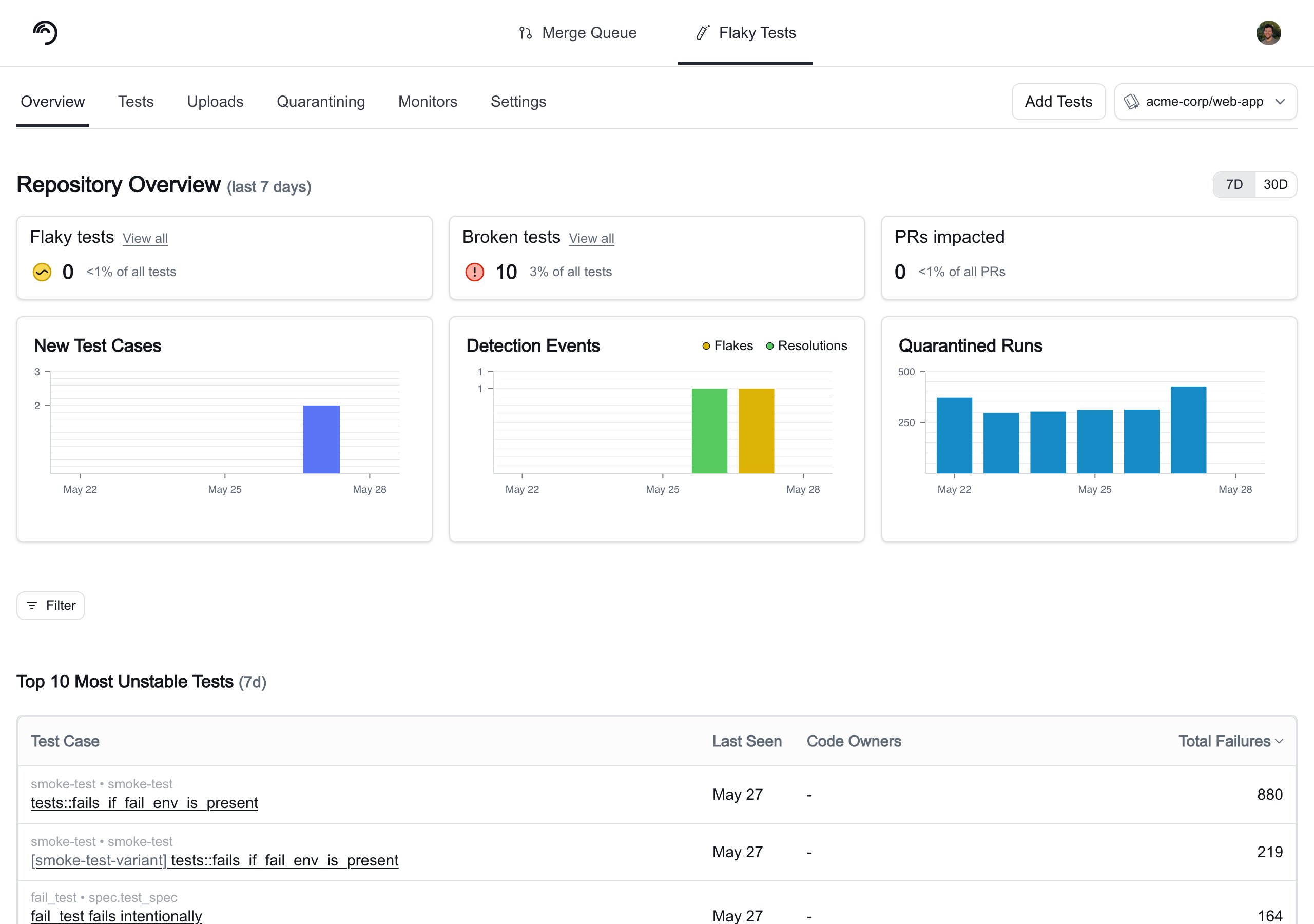

Selecting a collection opens its dashboard, on the Overview tab. The header carries the collection’s name, description, and Collection ID, plus a 7D / 30D range toggle that applies to everything below it. Three cards summarise impact over that window: Three charts show movement by day:

• New Test Cases — test cases seen for the first time on each day.
• Test Status Changes — one bar per day, split by what tests changed to: Newly Flaky, Newly Broken, and Recovered. This counts transitions rather than totals, so a test that becomes flaky and recovers in the same window appears in both series.
• Quarantined Runs — runs of quarantined tests per day.

Beneath them, a filter bar — branch, code owner, and, unique to collections, repository, since a collection can span several — applies to three tables: Top 10 Most Unstable Tests, Top 10 Longest-Running Tests, and Top 10 Longest-Manually-Quarantined Tests. Every row links to that test’s details. A linked-repositories band lists the repositories that have uploaded to the collection.

​

Test cases overview

You can view a table of all your test cases and their current status in Trunk Flaky Tests. Filters can also be set on the table to narrow test results down by test status, quarantine setting, ticket status, or by the name, file, or suite name of the test case. The table is sorted by default by the number of PRs impacted by the case, which is the best way to measure the impact of a flaky test. You can click on each test case to view the test case’s details.

​

Test case details

You can click on any of the test cases listed on the Flaky Tests dashboard to access the test case’s details. The test details page uses a tabbed layout:

• Summary: Run result charts and failure types grouped by unique failure reason.
• Test History: A searchable, paginated table of every individual test run with filtering and a detail panel.
• Monitors: Detection monitors configured for this test (visible when the detection engine is enabled).
• Events: A timeline of detection events, quarantine actions, ticketing events, and status transitions (Healthy, Flaky, Broken) for this test (visible when the detection engine is enabled). Use the category filter to scope to Flake Detection events to see which monitor triggered each transition.

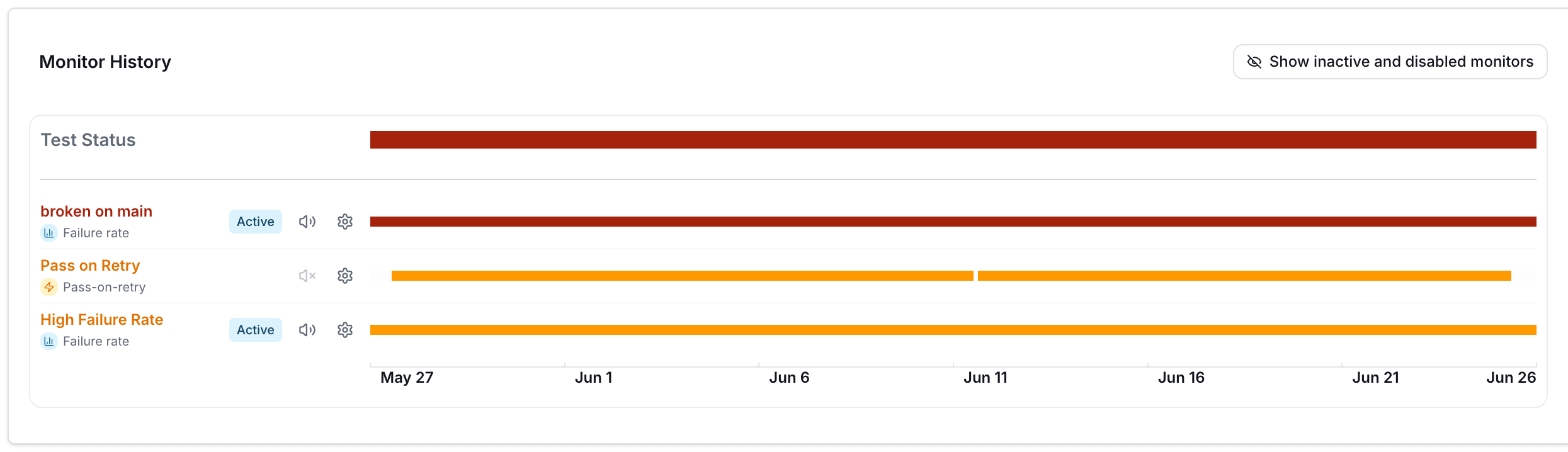

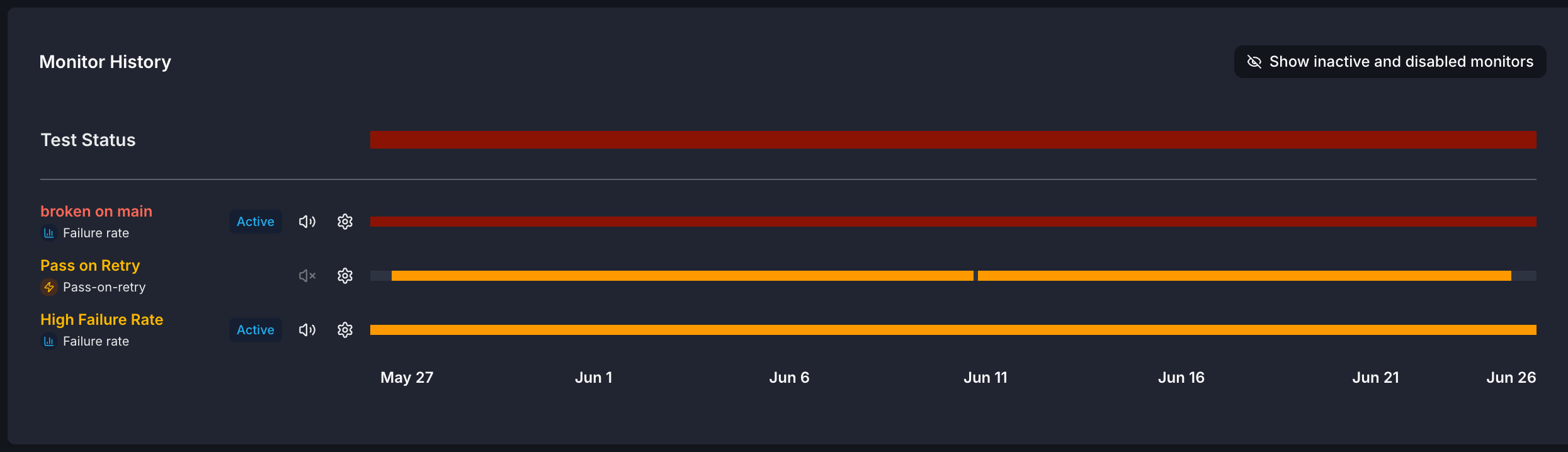

In addition to the tabbed content, the test details page shows the test’s current status (Healthy, Flaky, or Broken), ticket status, and codeowner information. The Monitors tab opens on a monitor history swimlane: one row per monitor, each showing a 30-day timeline of the classifications it produced. Bars are colored by status (or by the label’s color for label monitors). By default the swimlane shows only monitors with recent activity; the Show inactive and disabled monitors toggle reveals rows for disabled monitors and monitors with no events in the last 30 days.

​

Code owners

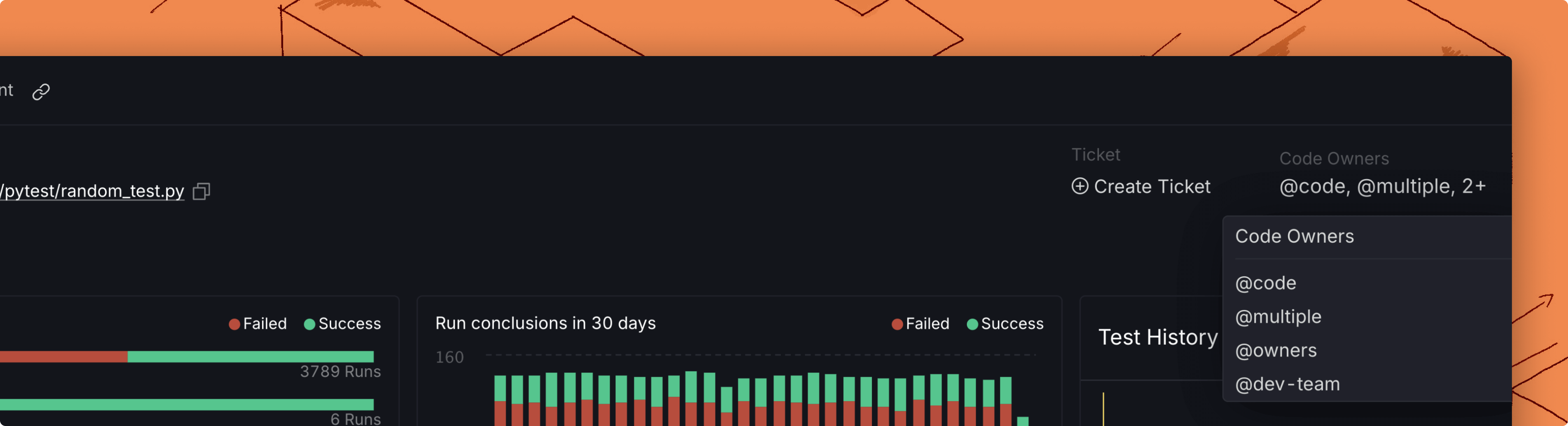

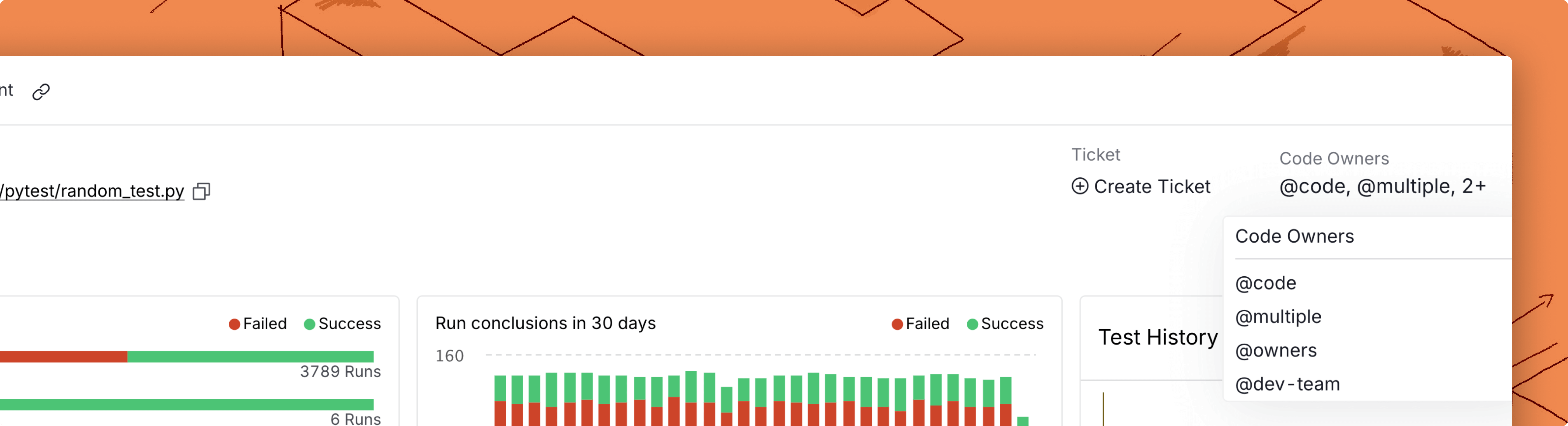

If you have a codeowners file configured in your repos, you will see who owns each flaky test in the test details view. We support code owners for GitHub and GitLab repos. This information will also be provided when creating a ticket with the Jira integration or webhooks.

​

Summary tab

The Summary tab shows an overview of the test’s recent run results and groups past failures by unique failure type.

​

Failure types

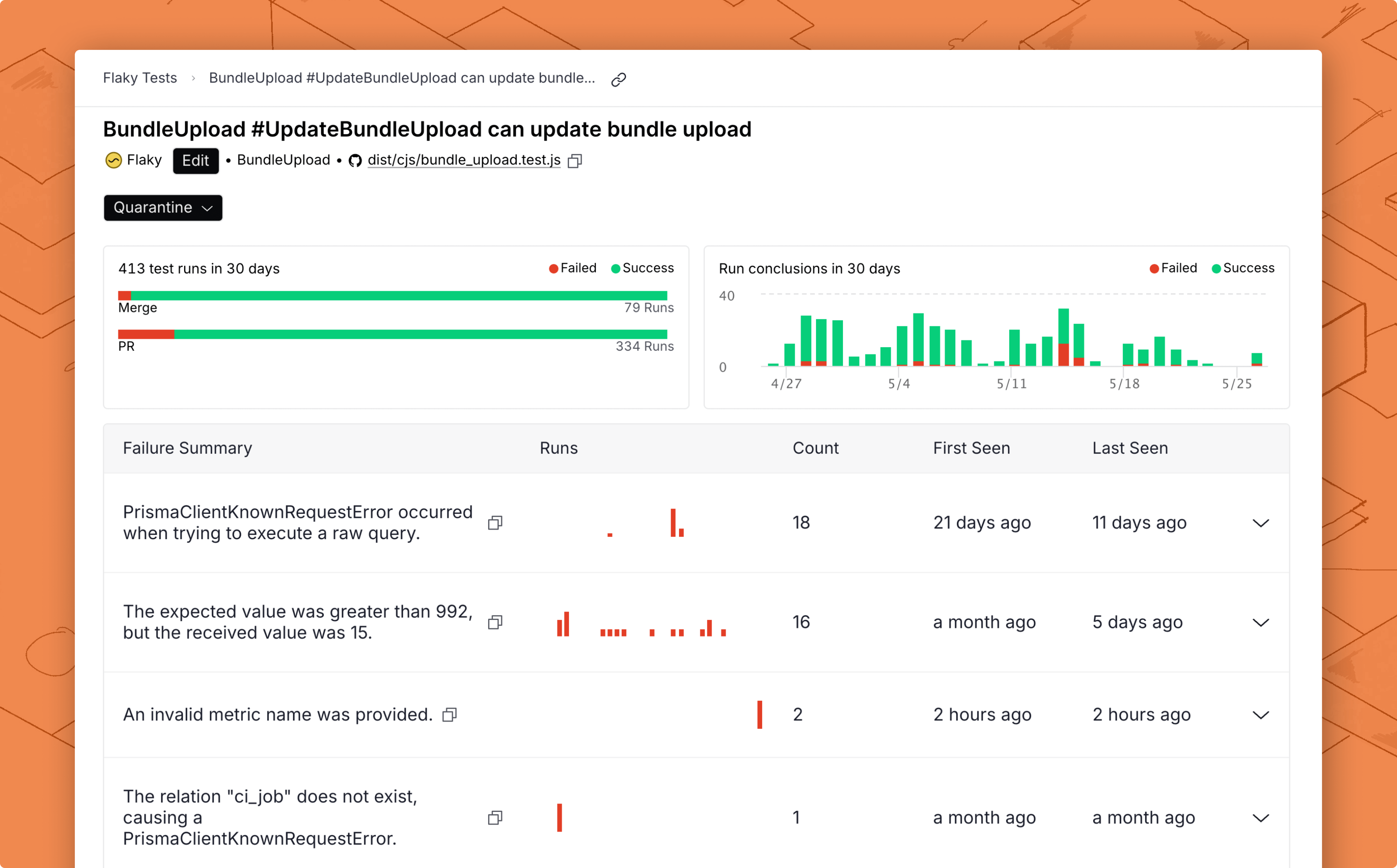

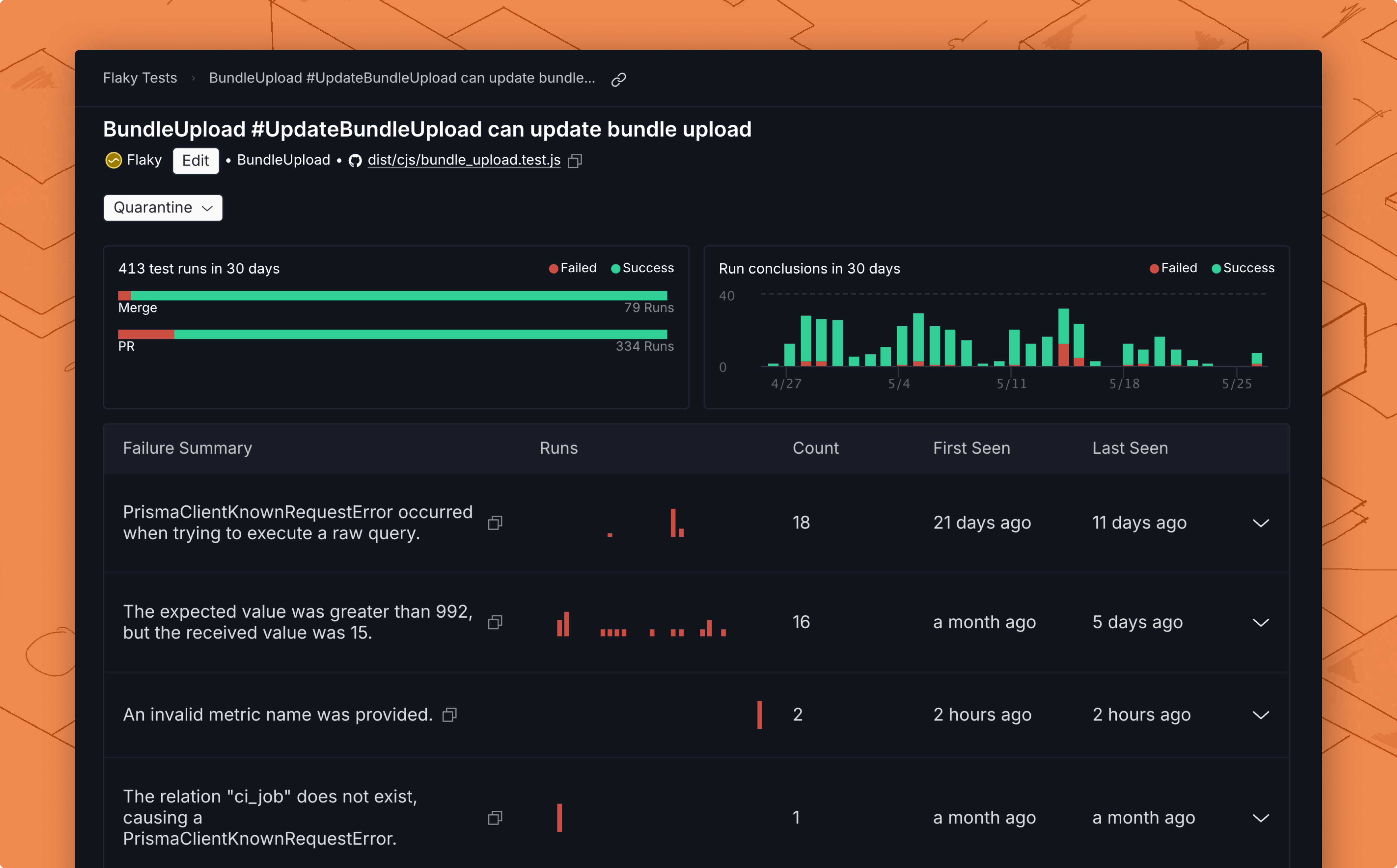

The Failure Types table shows the history of past test runs grouped by unique failure types. The Failure Type is a summary of the stack trace of the test run. You can click on the failure type to see a list of test runs labeled by branch, PR, Author, CI Job link, duration, and time.

​

Failure details

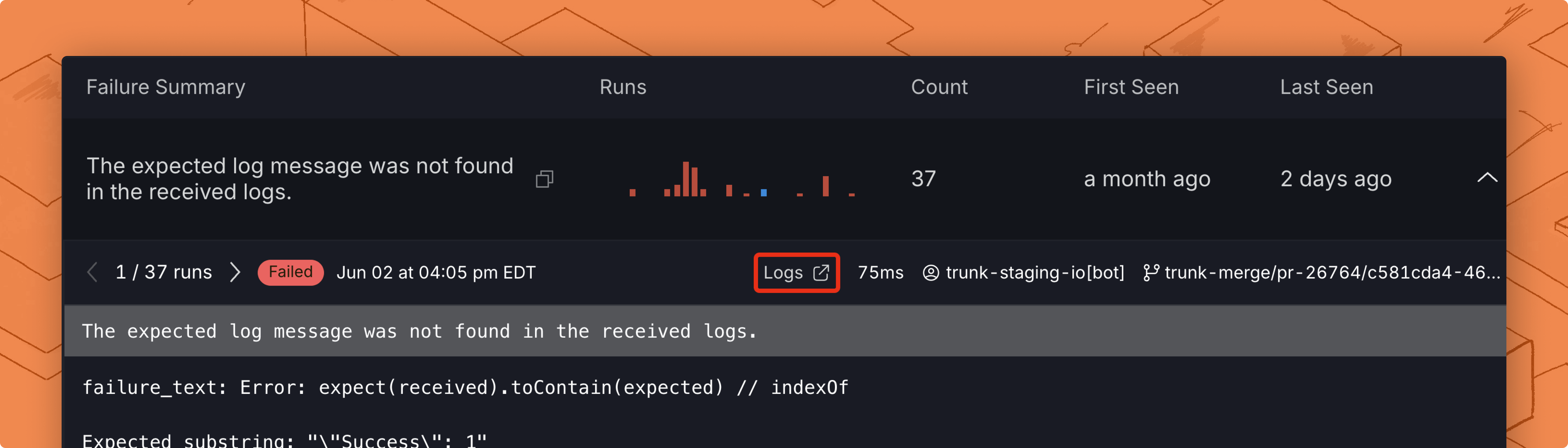

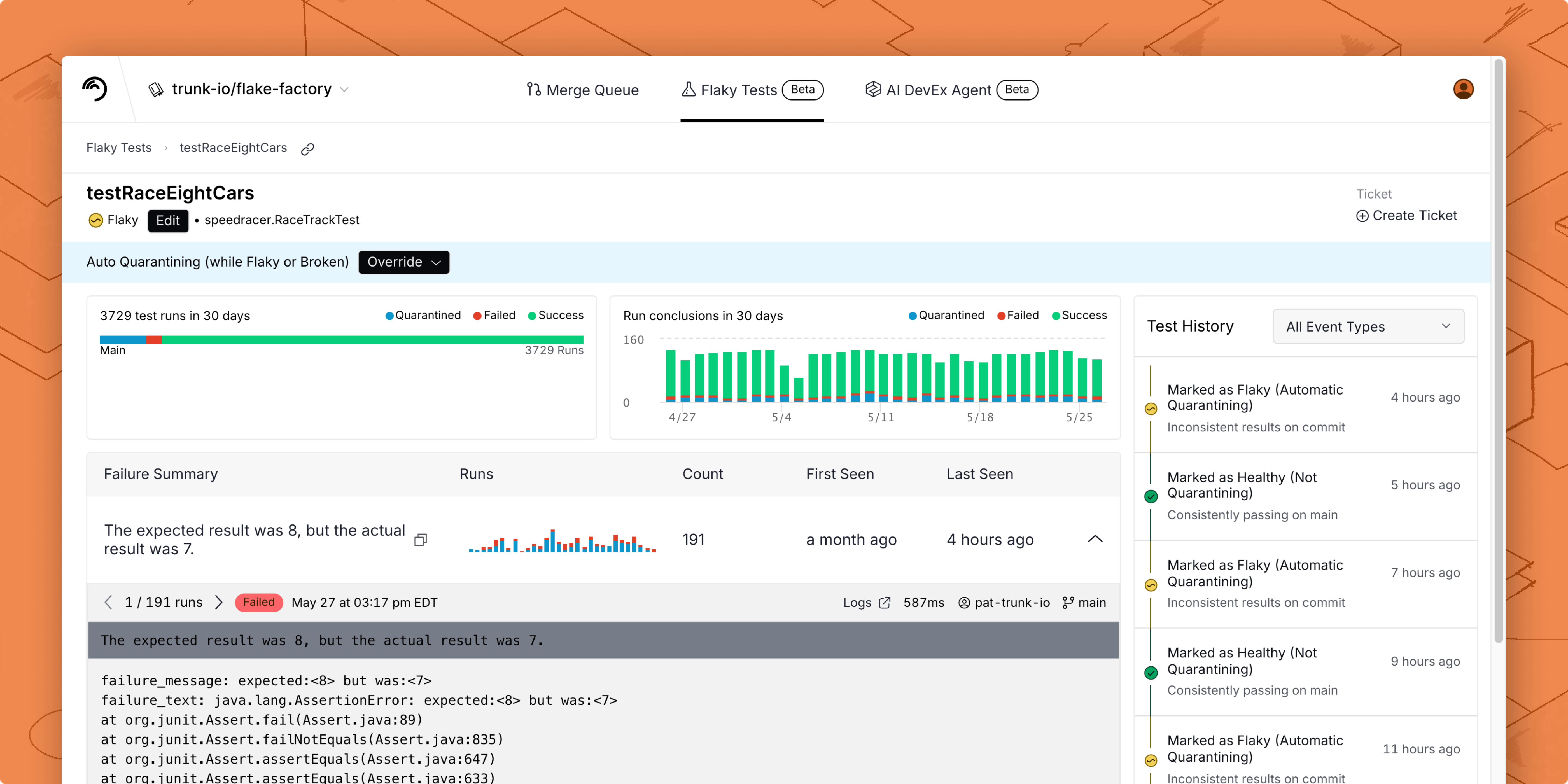

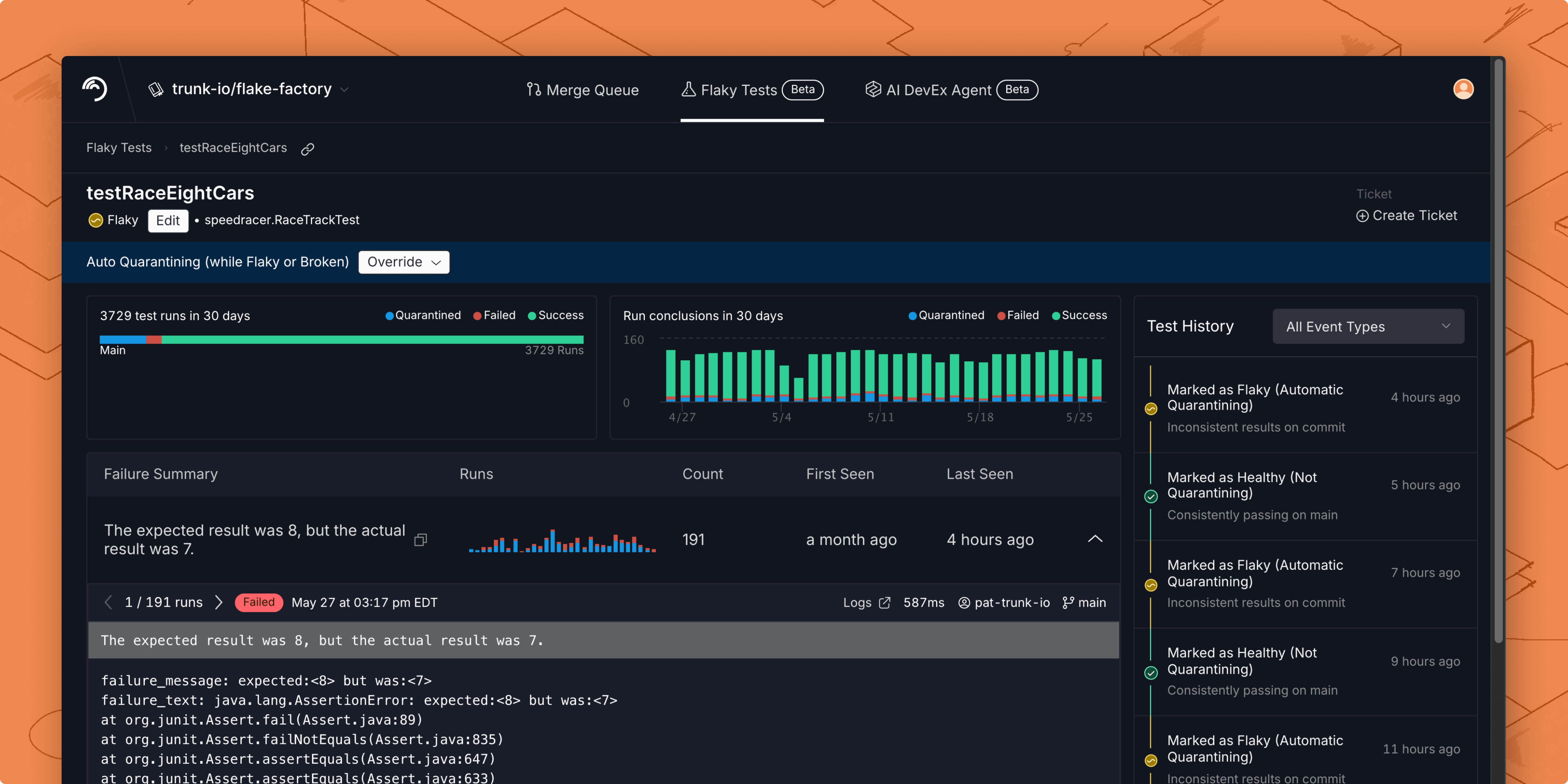

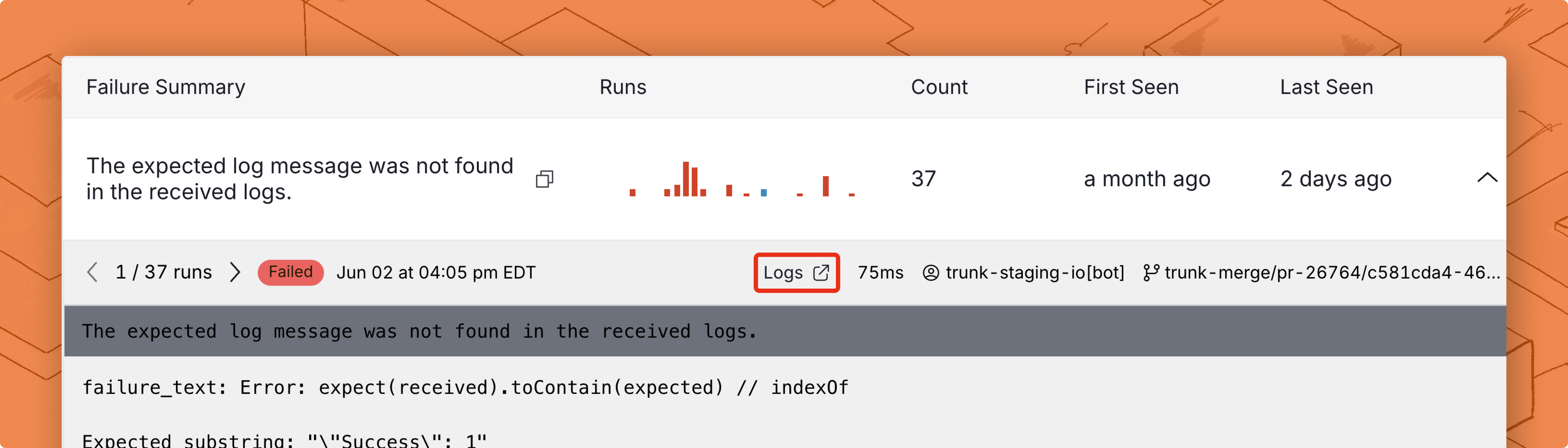

You can click on any of these test runs to see the detailed stack trace: You can flip through the stack traces of similar failures across different test runs by clicking the left and right arrow buttons. You can also see other similar failures on this and other tests. Go to the CI job logs. If you want to see full logging of the original CI job for an individual test failure, you can click Logs in the expanded failure details panel to go to the job’s page in your CI provider.

​

Test History tab

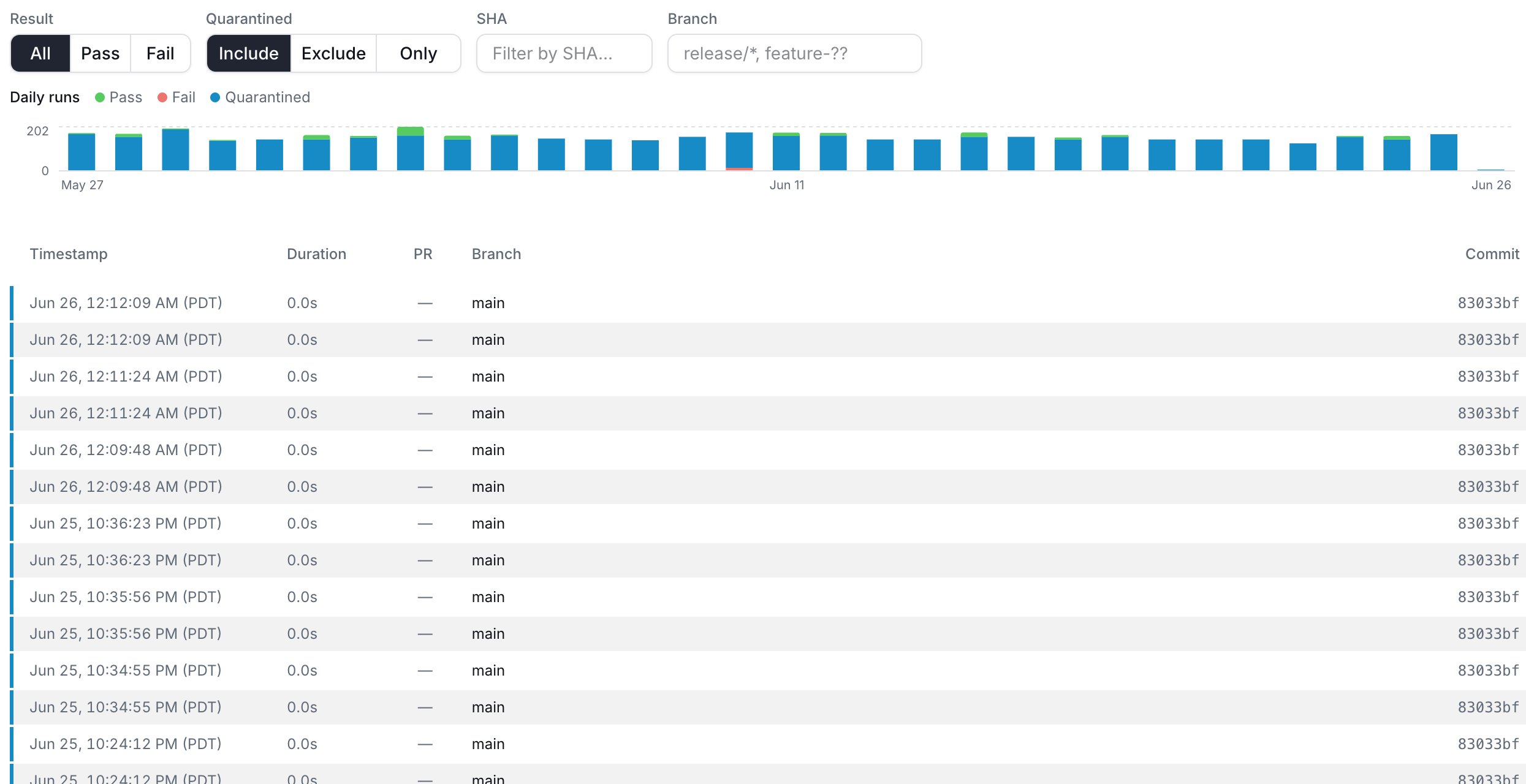

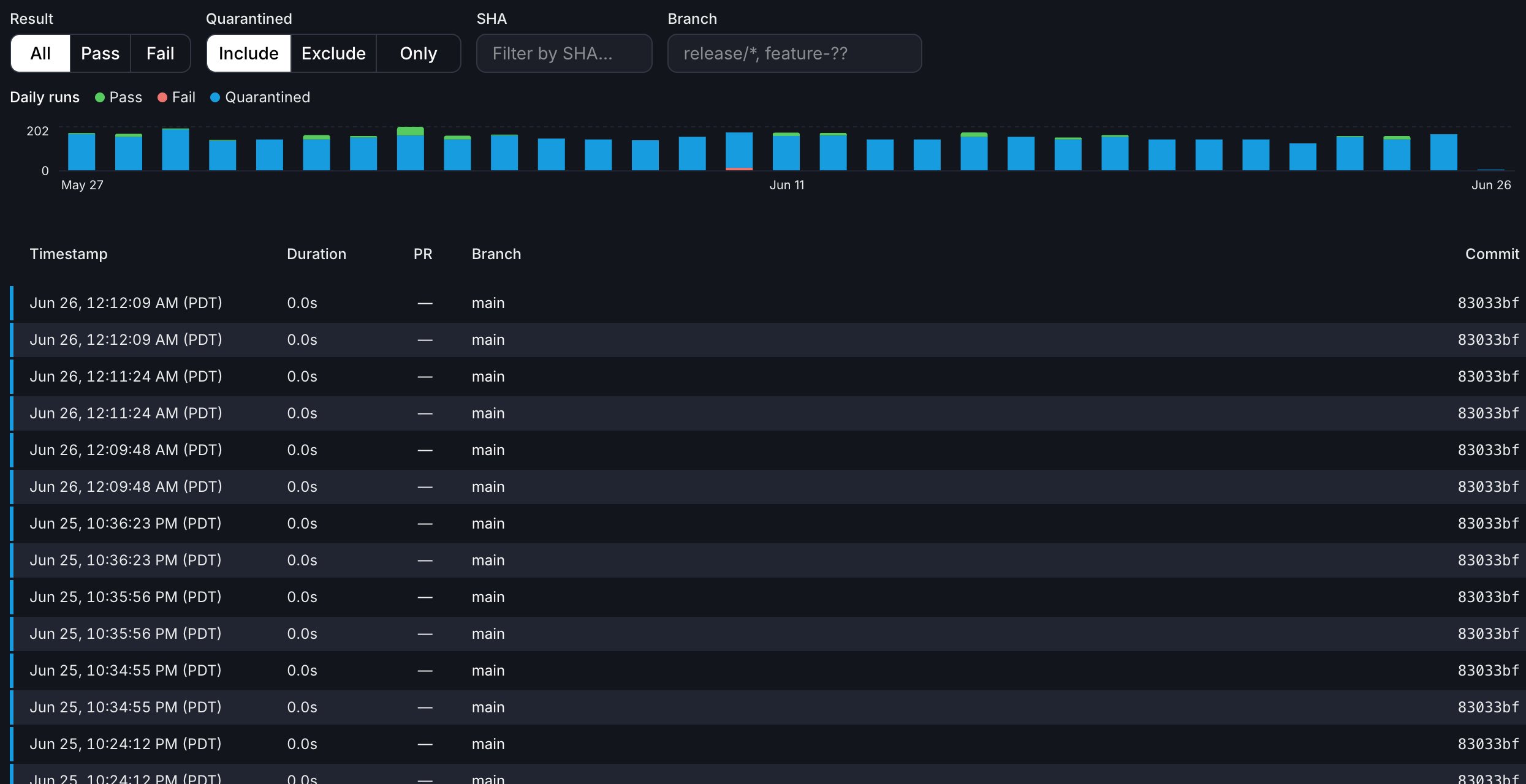

The Test History tab gives you full visibility into every individual run of a test. Use it to investigate patterns across branches, find specific failing runs, and drill into error details.

​

Daily runs chart

A stacked bar chart at the top of the tab shows daily test run counts. The legend identifies four categories:

• Green: Pass
• Red: Fail
• Blue: Quarantined
• Gray: Skipped

Click and drag on the chart to select a date range, which scopes the table below to runs from the selected days. The selected range appears next to the legend with an X button to clear just the range. The Reset button on the filter bar clears all filters at once, including the date range. The Result and Quarantined filters from the filter bar also apply to the chart bars. When you filter to only passing runs, for example, the chart shows only green (Pass) bars. The chart and table always reflect the same set of runs.

​

Filters

A filter bar below the chart provides four independent controls: Branch filter examples: All filters combine using AND logic, so you can use them together. For example, set Result to Fail and Quarantined to Only to surface only quarantined failures. The Reset button clears every filter at once, including the chart date range. Filter state is saved in the URL, so you can share or bookmark a filtered view. The Result filter accepts result=pass or result=fail. The Quarantined filter accepts quarantined=include, quarantined=exclude, or quarantined=only.

​

Runs table

The runs table displays a paginated list of individual test runs (25 per page) with the following columns: Each row has a colored left border indicating the run’s outcome. Quarantined runs always show blue, regardless of whether the run passed or failed. For non-quarantined runs, the border is green for pass, red for fail, orange for error, and a neutral gray for any other state.

​

Run detail panel

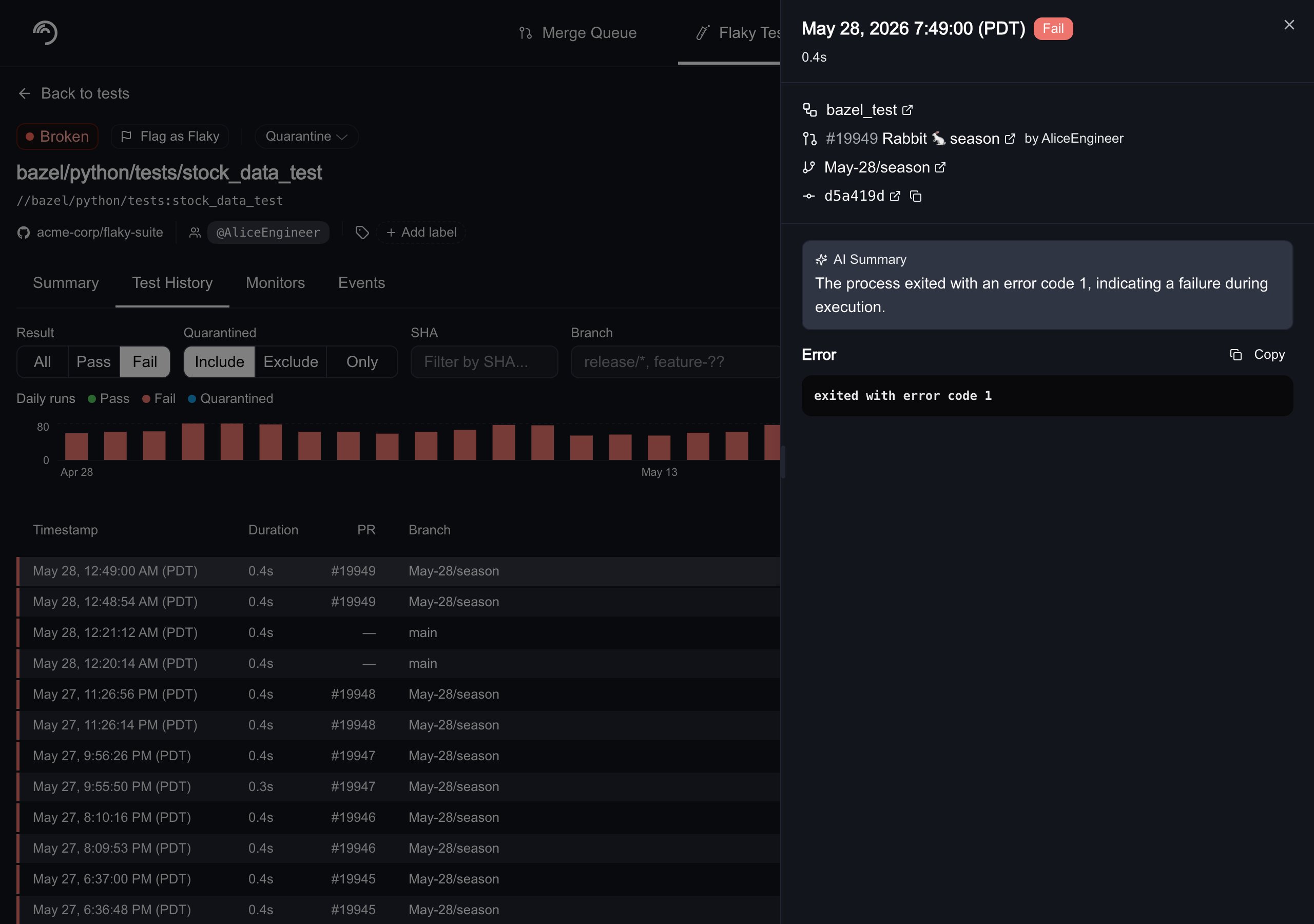

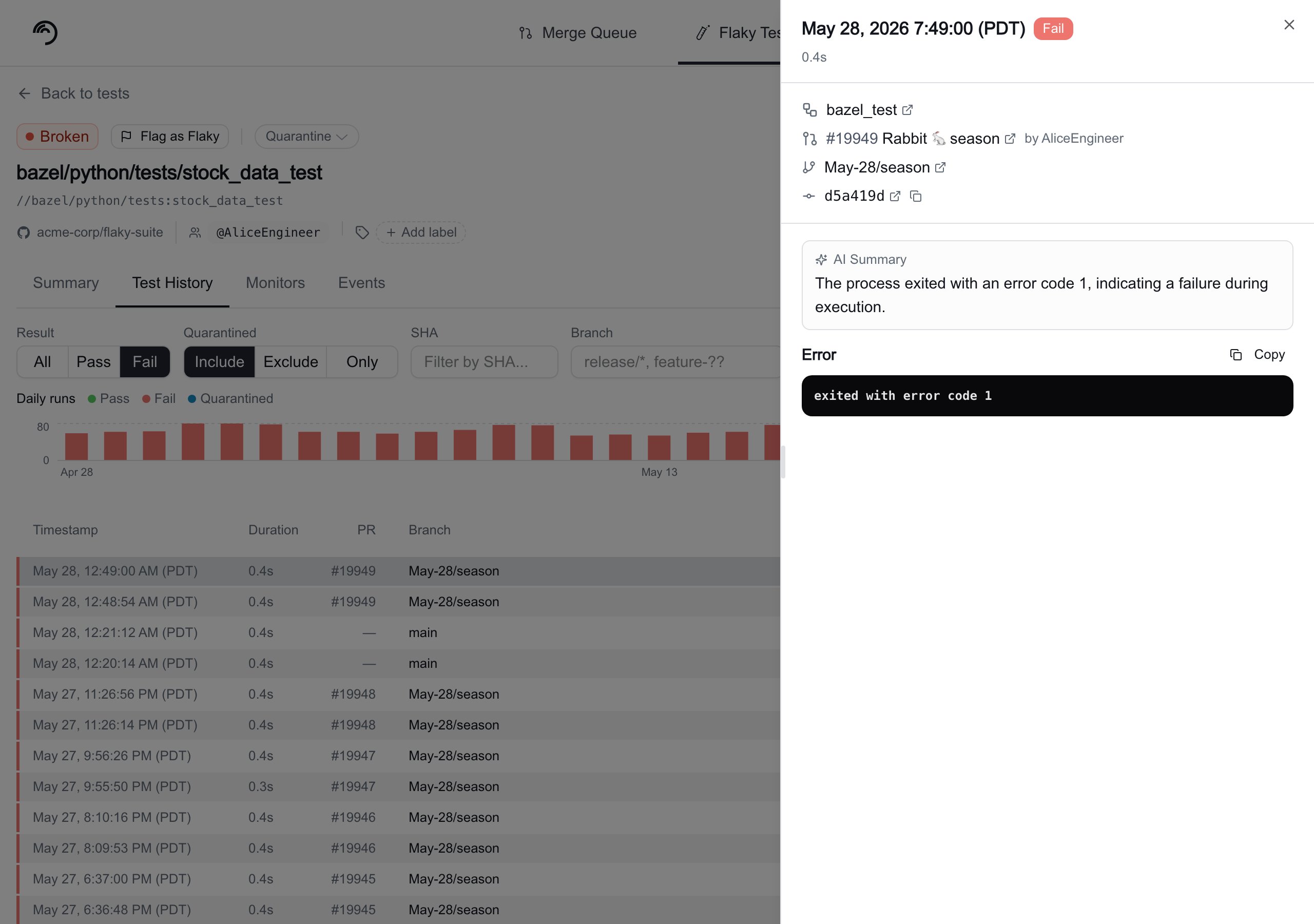

Click any row in the runs table to open a detail panel on the right side of the page. The panel shows:

• Run header: Timestamp, a result badge (Pass, Fail, Error, or Quarantined), and run duration.
• Source control: A CI job link (with the provider’s icon, the job name, and the CI duration), the linked pull request, branch, and commit. Merge queue runs also include a View in Merge Queue link.
• Error details: For failed, errored, or quarantined runs, an optional AI summary of the failure followed by the raw error text or stack trace.

​

Debugging a flaky test from the UI

The Summary tab, failure details, and Test History tab give you most of what you need to investigate a flaky test. A few gaps come up often enough to call out, along with the workarounds that exist today.

​

Drilling into the right parallel worker

The CI job link in the run detail panel points to the parent build, not the specific worker that produced the failure. If your CI runs a single job, this is fine. If you fan out across many parallel workers (some customers run 40+), you’ll have to click through workers in the CI provider to find the one whose log contains the failure. To shortcut this, capture the per-worker URL at test run time and include it in your JUnit output so it surfaces in the failure detail. Most CI providers expose an environment variable for the running job’s URL: Read the value at the start of the test job and append it to a test property, log line, or system-out block in your JUnit XML. The link then appears alongside the failure in Trunk instead of routing to the parent build.

​

Bundle Upload ID lookups

When the trunk-analytics-cli uploads a bundle, it prints a Bundle Upload ID to the job log. This ID does not currently map to a URL in the web app — there’s no search field for it in the dashboard. If you need to trace a specific upload back to its run data, contact support with the Bundle Upload ID.

​

CI artifact retention

CI providers typically retain build artifacts (screenshots, videos, traces) for one to two days. Flaky test tickets often take longer than that to investigate and resolve, which means the artifacts that would have helped explain the failure may already be gone by the time you open the ticket. If artifacts matter for your debugging flow, store them outside the CI provider’s retention window:

• Upload screenshots, videos, and traces to S3 (or another long-lived store) as a CI step, and include the object URL in the JUnit output alongside the per-worker URL described above.
• For especially noisy tests, attach the artifact URL to the Jira/Linear ticket Trunk opens via the ticketing integration.

​

Known limitations

A few framework-specific quirks are worth knowing about up front.
